Flush-Mount Microphone Base

CAD
  Coming Soon
Model: MS200
UPC: 631922110487

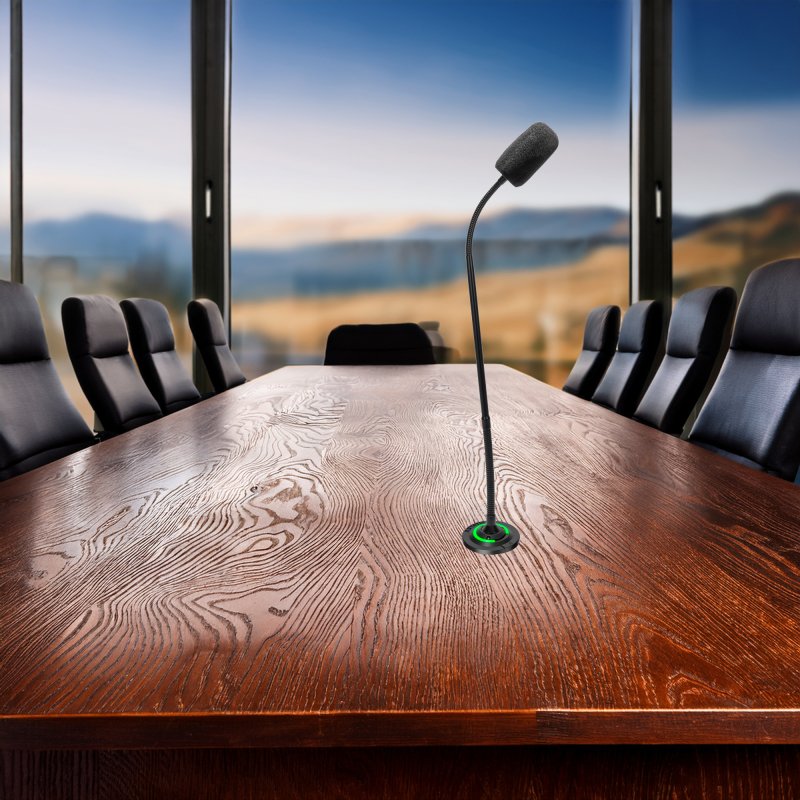

The Astatic MS200 is a professional flush mount microphone base designed for permanent installation in conference rooms, boardrooms, lecterns, pulpits, and council chambers
$99.99
Notify me when in stock

Overview

The Astatic MS200 is a professional flush mount microphone base designed for permanent installation in conference rooms, boardrooms, lecterns, pulpits, and council chambers. Built to accept standard 3 pin XLR gooseneck microphones, the MS200 delivers a clean, unobtrusive solution that enhances both the appearance and usability of installed sound systems. A touch sensitive switch and integrated dual color LED ring provide clear visual indication of microphone status, ensuring intuitive operation for presenters and meeting participants.

Optimized for reliability and ease of integration, the MS200 operates entirely on standard phantom power (DC 20–52V) and requires no external power supply. An included anti vibration rubber insert and metal fixing ring helps isolate the microphone from mechanical noise and surface vibration, improving speech clarity in demanding environments. With durable metal construction and low profile styling, the MS200 is an ideal choice for modern installed AV systems where consistent performance and professional presentation are essential.

Details

Description:

  • Flush‑mount desktop installation for clean, unobtrusive appearance
  • Touch‑sensitive mute switch for simple, intuitive control

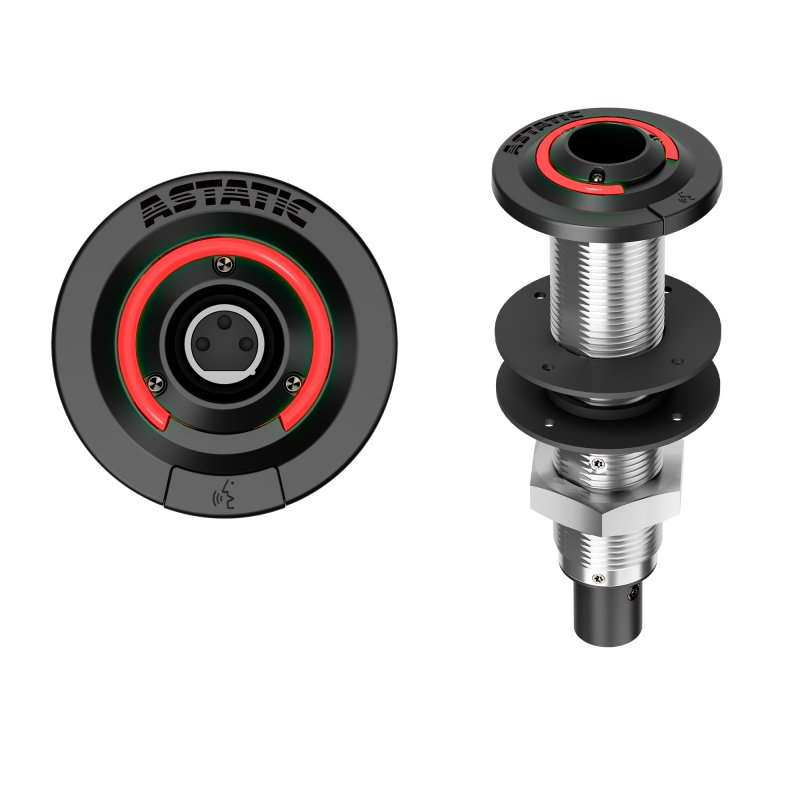

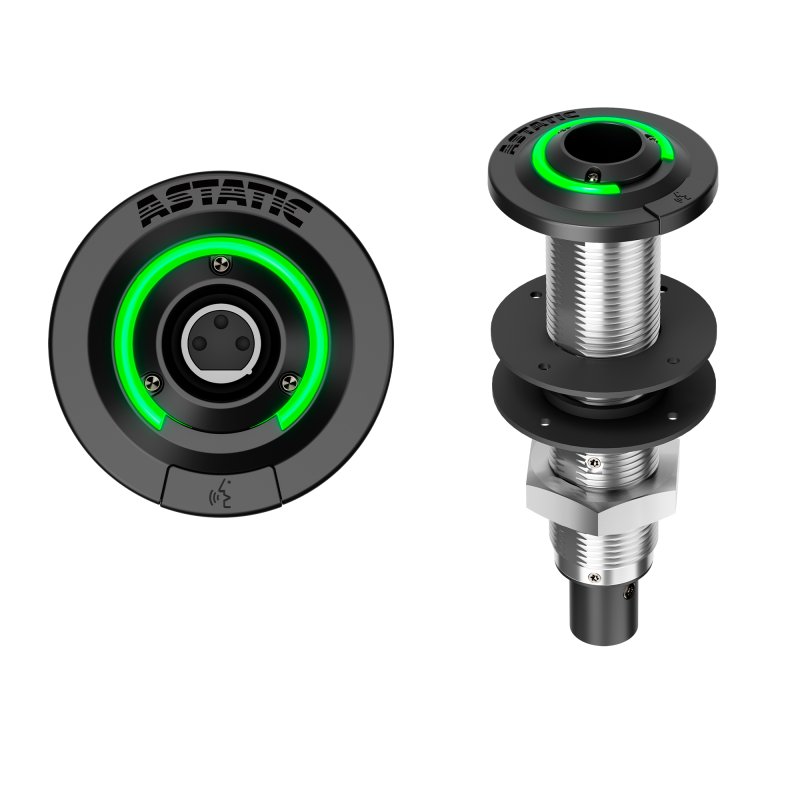

  • Dual‑color LED status ring
    • Green = microphone active
    • Red = microphone muted
  • Phantom‑powered operation (20–52V DC) — no external power supply required
  • Anti‑vibration isolation reduces table‑borne noise and handling sounds
  • Compatible with standard 3‑pin XLR gooseneck microphones
  • Durable metal construction for long‑term installed use

Specification

Astatic MS200

Product Type

Flush‑mount microphone base

Frequency Response

50 Hz – 20 kHz

Input Connector

3‑pin XLR female

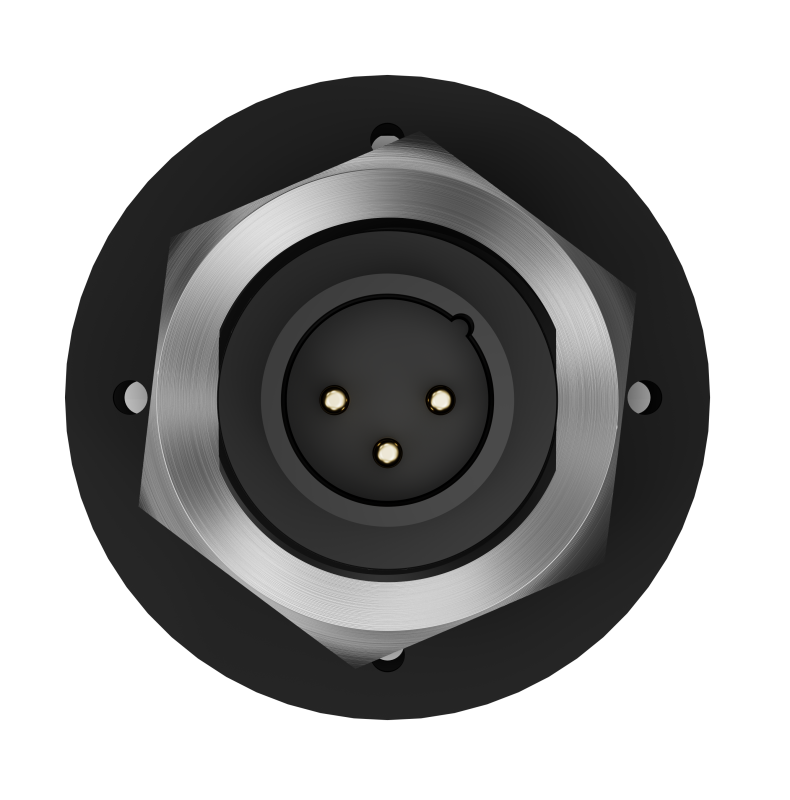

Output Connector

3‑pin XLR male

Switch Type

Touch‑sensitive

LED Indicator

Green (active), Red (mute)

Phantom Power

DC 20–52 V

Power Consumption

4.5 mA (typical)

Default State

Mute on power‑up

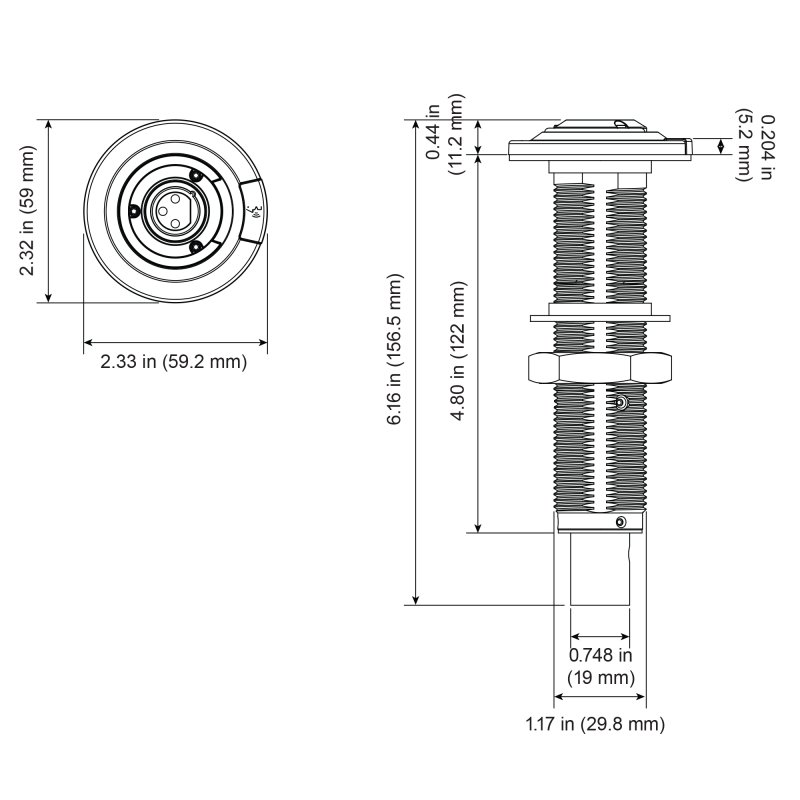

Dimensions

59.2 × 59 × 156.5 mm

Weight

Approx. 310 g

Supplied Accessories

Anti‑vibration rubber (1), metal fixing ring (1)
