Microphone Base

CAD
  Coming Soon
Model: MB100
UPC: 631922110470
The Astatic MB100 is a professional wired microphone desk base designed for use with phantom powered condenser gooseneck microphones in conference, education, corporate, and government installations
$149.99
Notify me when in stock

Overview

The Astatic MB100 is a professional wired microphone desk base designed for use with phantom powered condenser gooseneck microphones in conference, education, corporate, and government installations. Featuring a compact, low profile form factor, the MB100 provides a clean and unobtrusive solution for tabletop and lectern mounting while delivering reliable audio performance. The integrated red/green LED status indicator provides immediate visual feedback, clearly showing when the microphone is active or muted—an essential feature for moderated meetings and formal environments.

Engineered for flexibility and ease of use, the MB100 includes a programmable talk/mute switch that can be configured for toggle, push to talk, or push to mute operation depending on system requirements. Balanced audio output via XLR connector allows seamless integration with installed sound systems, while operation from standard phantom power (DC 24–52V) eliminates the need for external power supplies. With a solid, vibration resistant construction and compatibility with a wide range of standard gooseneck microphones, the MB100 is a dependable choice for everyday installed applications where clarity and control matter most.

Details

Description:

  • Professional desk‑mounted microphone base for installed sound applications
  • Programmable talk/mute switch
    • Toggle on/off
    • Push‑to‑talk
    • Push‑to‑mute

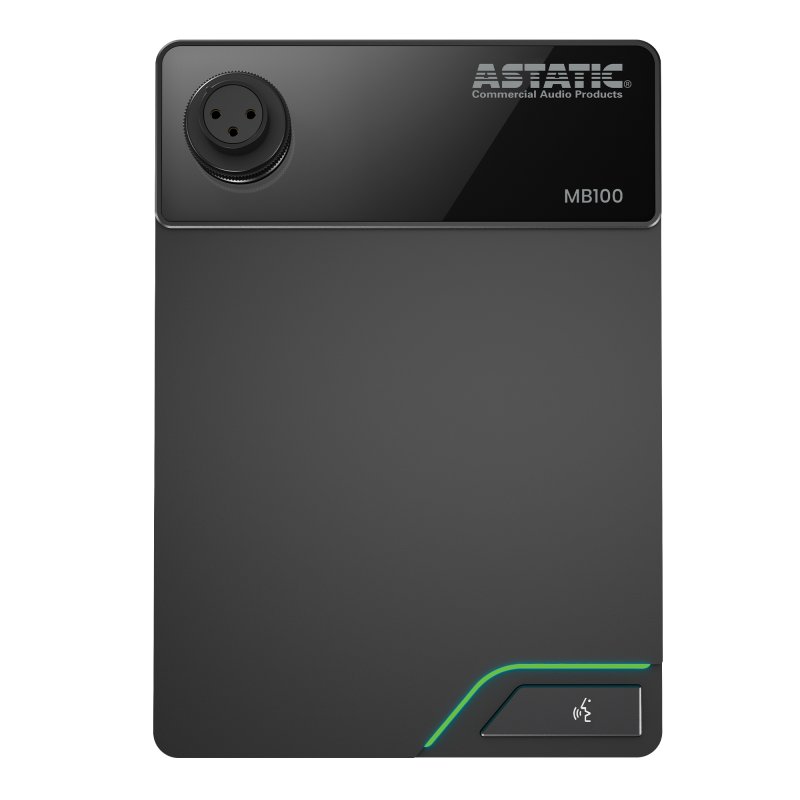

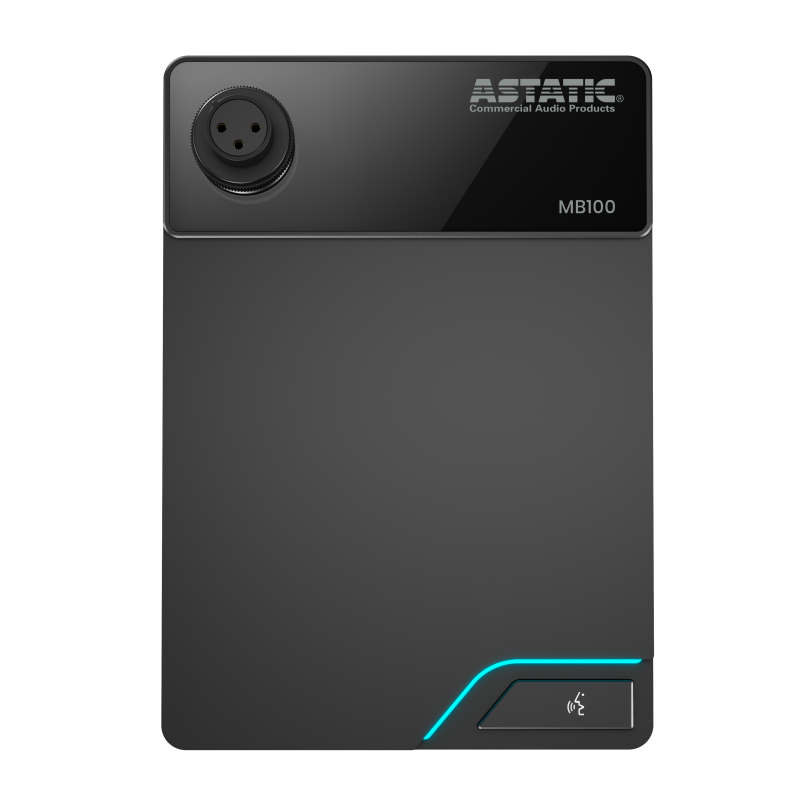

  • Red/green LED status indicator for clear microphone state visibility
  • Balanced analog audio output

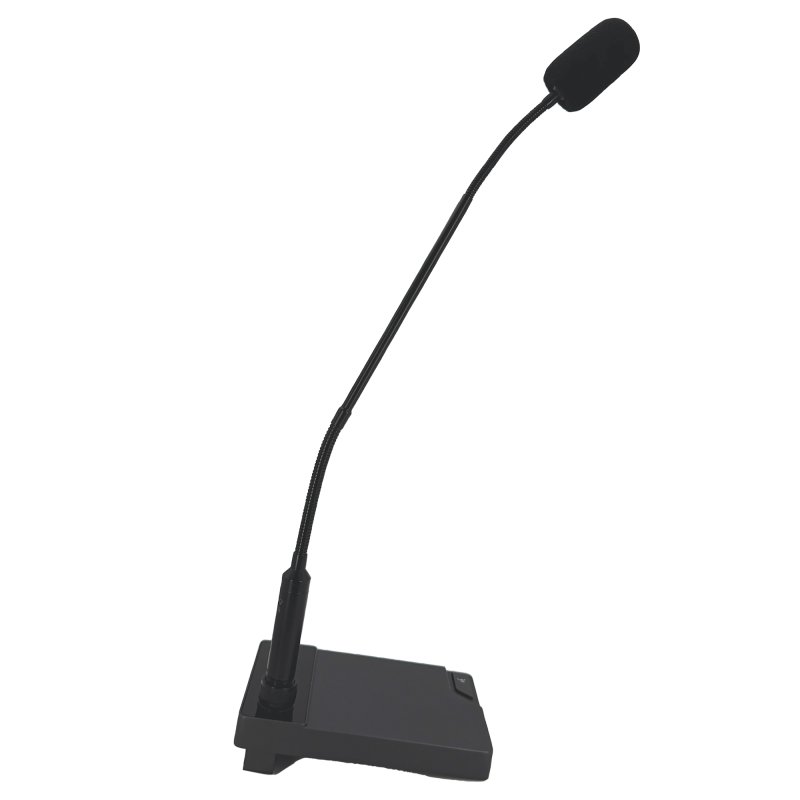

  • Compatible with dynamic or condenser gooseneck microphones
  • Wide phantom power range (DC 24–52V) for broad system compatibility
  • Solid, vibration‑resistant construction for tabletop stability
  • Clean, low‑profile design suitable for conference and lectern use

Specification

Astatic MB100

Product Type

Gooseneck microphone desk base

Frequency Response

50 Hz – 20 kHz

Output Impedance

250 Ω

Dynamic Range (typical)

100 dB (1 kHz at max SPL)

Signal‑to‑Noise Ratio

110 dB (1 kHz, 1% THD)

Switch Function

Talk / Mute (programmable modes)

Power Requirements

Phantom power DC 24 – 52 V

Microphone Input

3‑pin XLR female

Audio Output

3-pin XLR male

LED Indicator

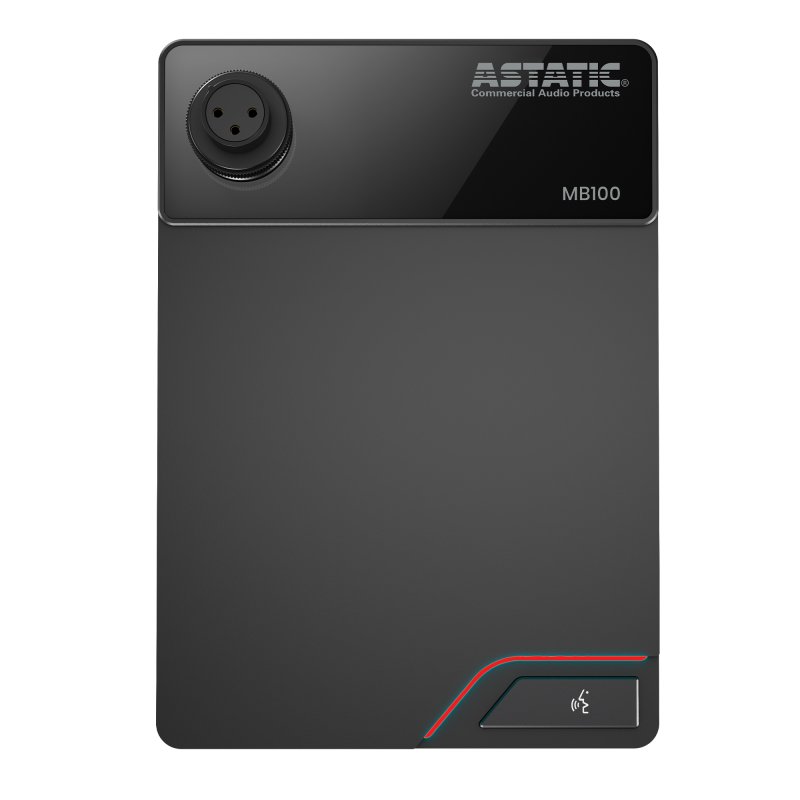

Red (mute), Green (active)

Weight

Approx. 720 g
