Overhead Cardioid Condenser Gooseneck Microphone

CAD
  Coming Soon
Model: GCM113
UPC: 631922110456

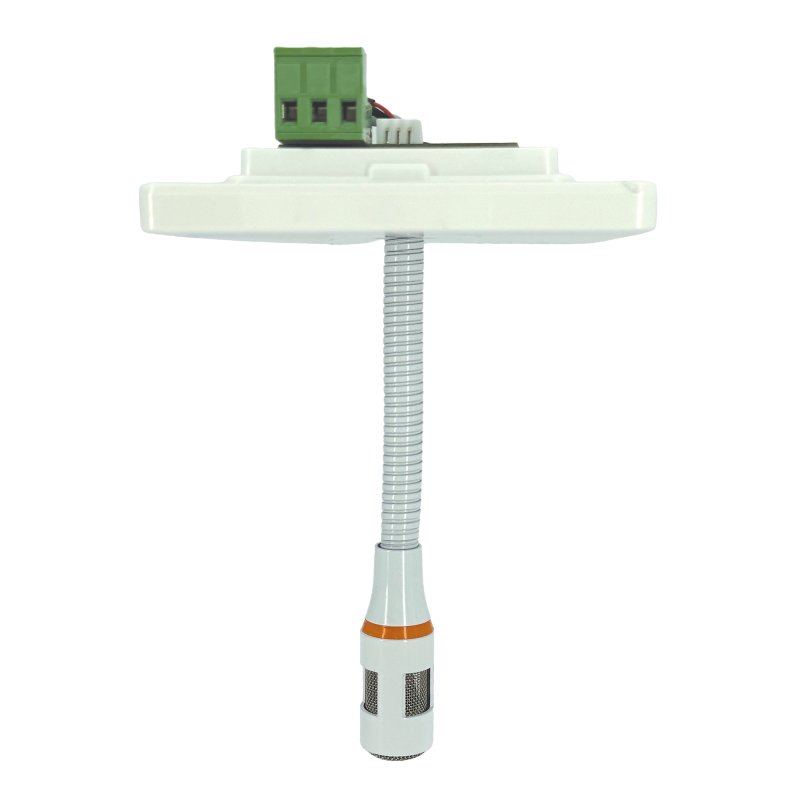

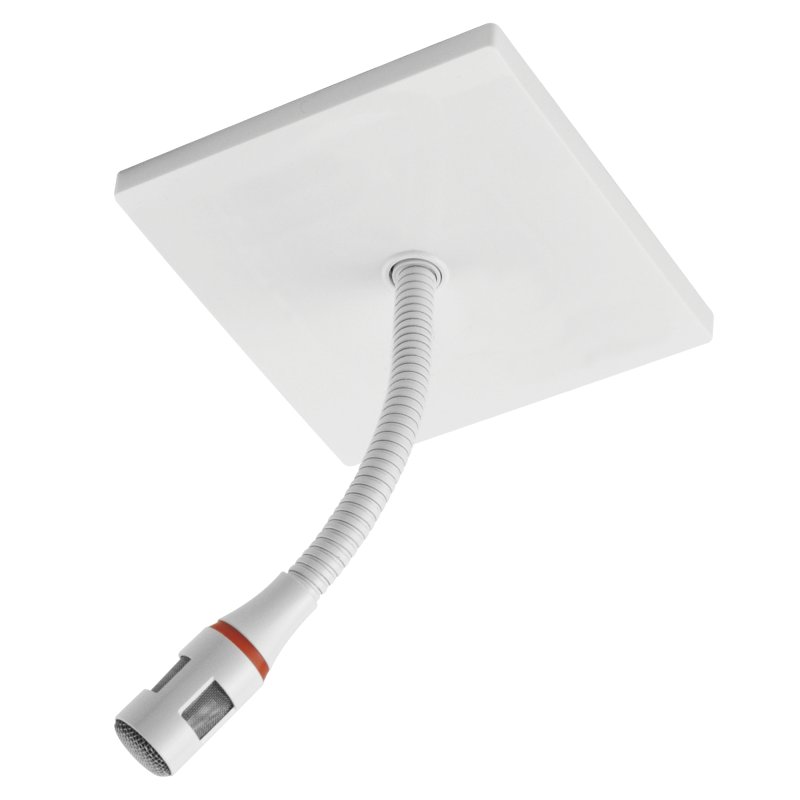

The Astatic GCM113 is a professional overhead condenser microphone designed for discreet, ceiling mounted installations where clear, intelligible speech and natural sound pickup are required
$149.99
Notify me when in stock

Overview

The Astatic GCM113 is a professional overhead condenser microphone designed for discreet, ceiling mounted installations where clear, intelligible speech and natural sound pickup are required. Featuring a cardioid pickup pattern and a short flexible gooseneck, the GCM113 is optimized for low ceiling environments and precise microphone positioning. Its clean, low profile design allows the microphone to blend seamlessly into conference rooms, classrooms, houses of worship, and distance learning spaces while delivering consistent, high quality audio performance.

Engineered for modern installed sound systems, the GCM113 provides excellent RF shielding, effectively rejecting interference from mobile phones and other wireless devices common in meeting spaces. A built in 100 Hz high pass filter reduces low frequency noise while maintaining natural voice clarity, and the wide dynamic range supports confident speech reproduction with high gain before feedback. Powered by standard phantom power (DC 24–52V) and terminating in a convenient 3 pin quick connector, the GCM113 installs easily into standard electrical boxes for fixed or suspended ceiling applications.

Details

Description:

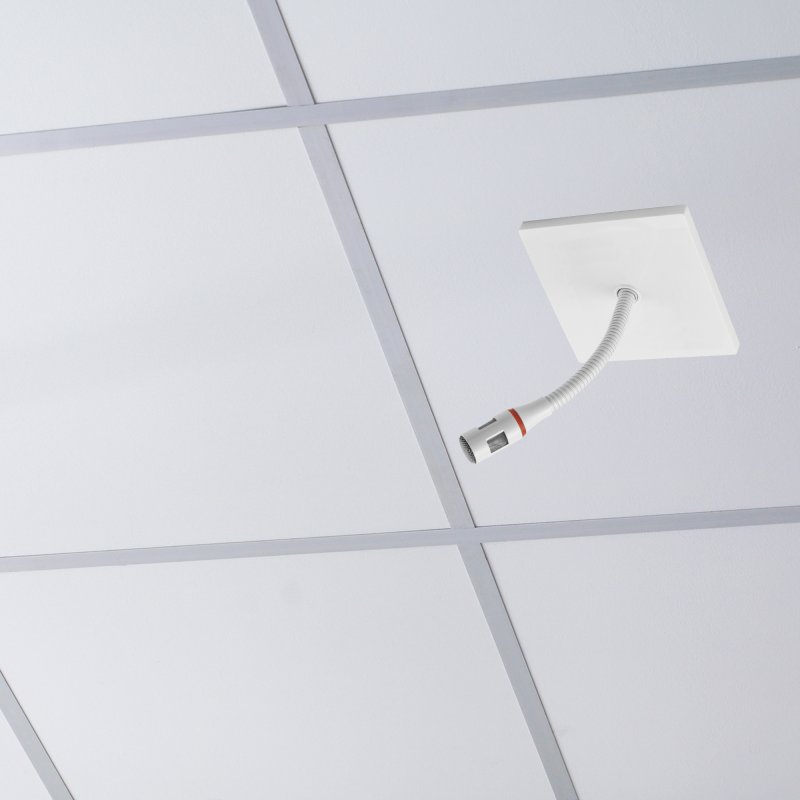

  • Overhead condenser microphone for ceiling mounted installations
  • Cardioid polar pattern for focused pickup and improved isolation
  • Short flexible gooseneck enables optimal aiming in low ceiling spaces
  • Excellent RF shielding minimizes interference from mobile devices
  • Built in 100 Hz high pass filter (18 dB/octave) reduces low frequency noise
  • High gain before feedback with flat, natural frequency response
  • Phantom powered operation (DC 24–52V) for wide system compatibility
  • Quick connect output and standard electrical box mounting for fast installation

Specification

Astatic GCM113

Microphone Type

Condenser

Polar Pattern

Cardioid

Frequency Response

35 Hz – 18 kHz

High‑Pass Filter

100 Hz, 18 dB/octave

Sensitivity

–32 dB (1 V/Pa)

Output Impedance

200 Ω

Maximum SPL

130 dB SPL (1 kHz @ 1% THD)

Dynamic Range (typical)

110 dB

Signal‑to‑Noise Ratio

>68 dB (1 kHz @ 1 Pa)

Power Requirements

Phantom power DC 24 – 52 V

Current Consumption

20 mA (typical)

Output Connector

3‑pin fast euro connector

Recommended Pickup Distance

10 – 20 cm

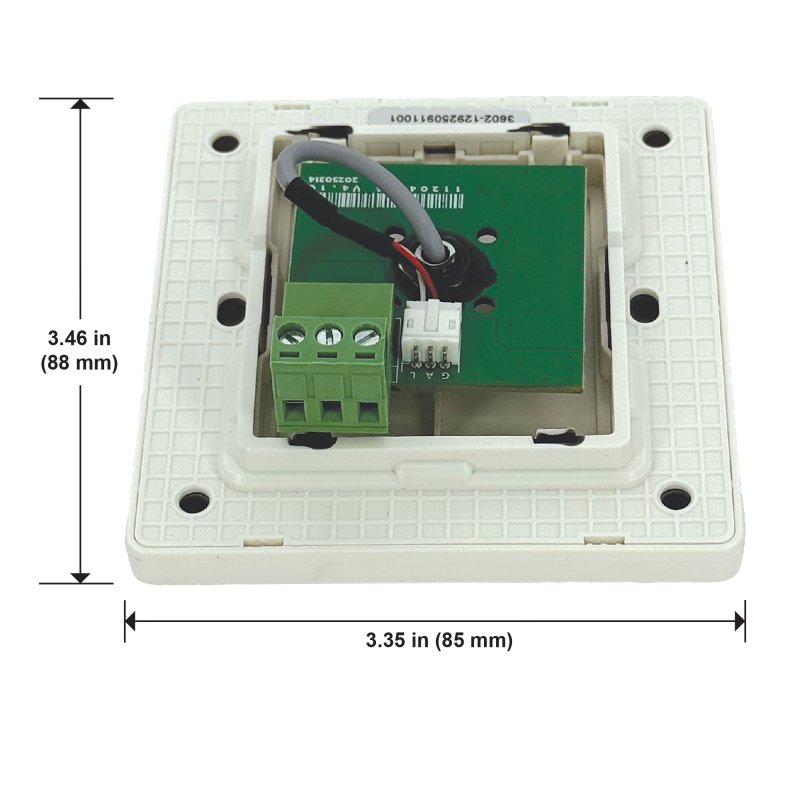

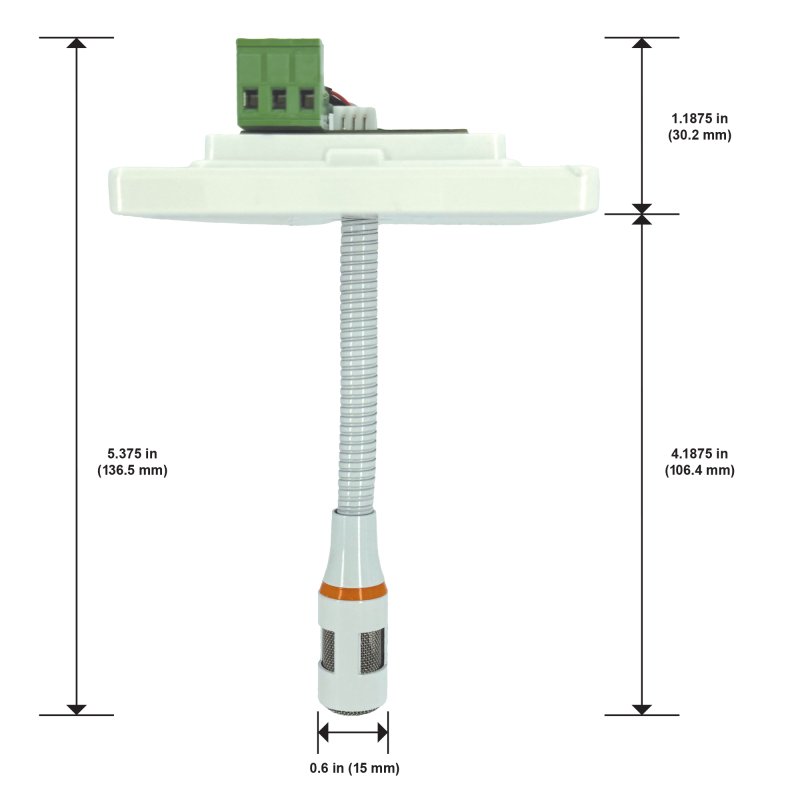

Dimensions

90 × 86 × 135 mm

Weight

Approx. 135 g

Finish

White
