Boundary Condenser Button Microphone

CAD
  Coming Soon
Model: B205-M
UPC: 631922110425

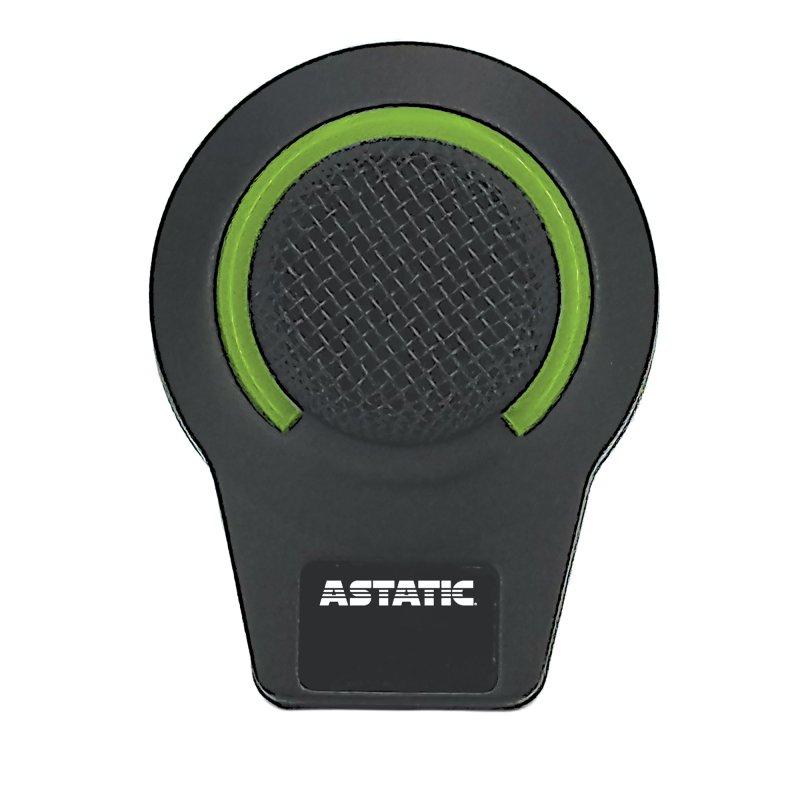

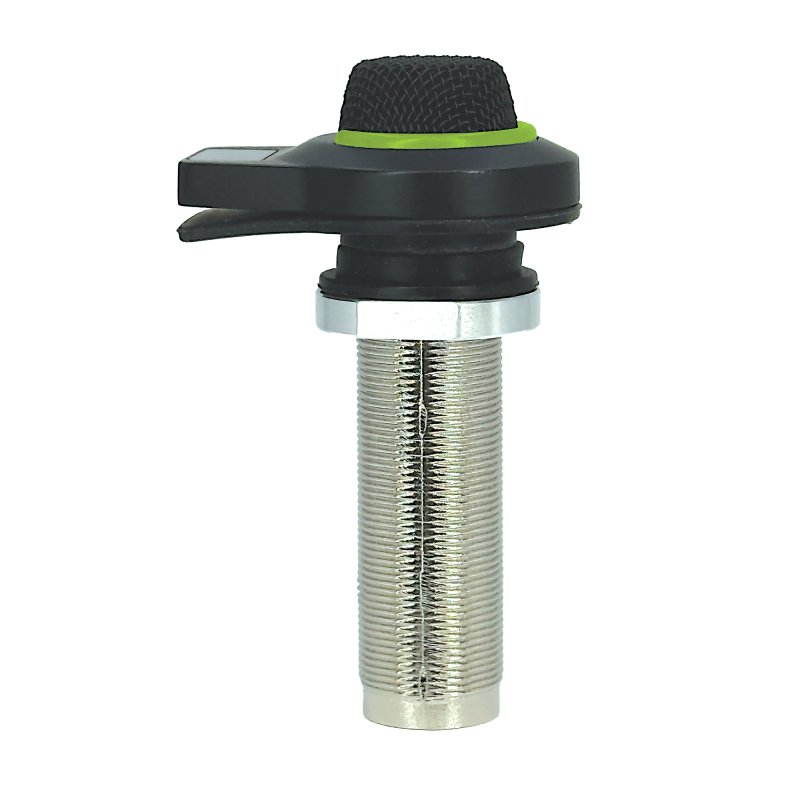

The Astatic B205 M is a compact boundary condenser microphone designed for clear, intelligible sound capture in conference rooms, classrooms, boardrooms, video conferencing spaces, and installed recording environments
$99.99
Notify me when in stock

Overview

The Astatic B205 M is a compact boundary condenser microphone designed for clear, intelligible sound capture in conference rooms, classrooms, boardrooms, video conferencing spaces, and installed recording environments. Utilizing a subcardioid polar pattern, the B205 M delivers focused pickup while reducing ambient room noise and reflections, making it ideal for tabletop or surface mounted applications where consistent speech clarity is required. Its low profile, lightweight design allows discreet placement without visual clutter, supporting professional AV installations where aesthetics matter.

Equipped with a back electret condenser element, the B205 M offers a smooth, natural frequency response and high SPL handling for both speech and live sound reinforcement. A wide dynamic range and low noise floor ensure accurate audio reproduction, while phantom powered operation (9–52 V) allows compatibility with a broad range of mixers, DSPs, and conferencing systems. With professional 3 pin XLR connectivity and rugged construction, the B205 M is well suited for fixed installations and portable applications alike.

Details

Description:

  • Boundary condenser microphone for tabletop and surface mounting
  • Subcardioid polar pattern for focused pickup and reduced ambient noise
  • Mute button with led indicator (red=mute; green=active)
  • Back‑electret condenser element delivers clear, detailed speech reproduction
  • High maximum SPL handling suitable for speech and live sound sources
  • Wide dynamic range ensures clean audio with minimal distortion
  • Low‑profile, lightweight design for discreet installation
  • Wide phantom‑power range (9–52 V DC) for system compatibility
  • Professional 3‑pin XLR output for reliable analog connectivity

Specification

Astatic B205‑M

Microphone Type

Back‑electret condenser

Polar Pattern

Subcardioid

Frequency Response

50 Hz – 17 kHz

Sensitivity

–39 dB ±3 dB (0 dB = 1 V/Pa @ 1 kHz)

Output Impedance

200 Ω

Maximum SPL

140 dB SPL (1 kHz @ 1% THD)

Dynamic Range

112 dB

Signal‑to‑Noise Ratio

68 dB

Power Requirements

Phantom power 9 – 52 V DC

Output Connector

3‑pin XLR

Dimensions

30 mm (diameter) × 76.5 mm (length)

Weight Approx. 87 g
