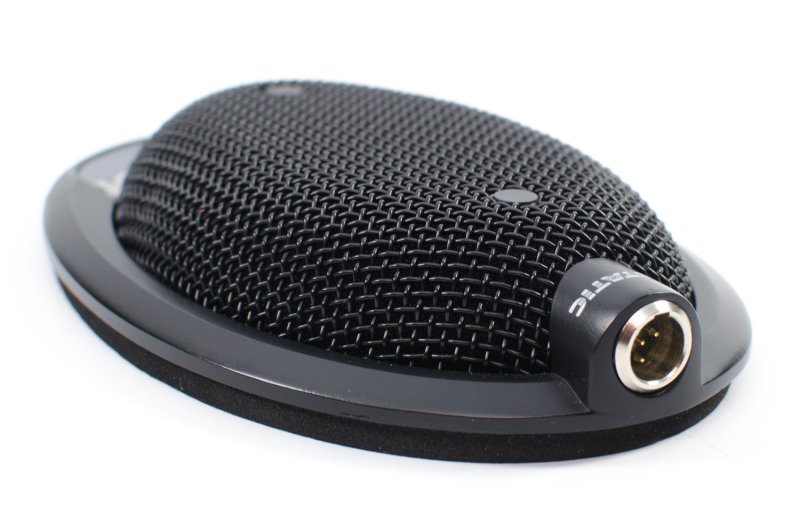

CAD Audio 930VPL Variable Pattern Boundary Microphone

CAD
  No Backorders
Model: AMS-930VPL
UPC: 631922103670
Variable Polar Pattern, Prog Switch, Boundary Mic w/active LED & Logic
$179.99

Overview

Operating Principal: Permanently-Biased CondenserPolar Pattern: Continuously VariableFrequency Response: 90Hz 17KHz, Sensitivity: -32dBV (25 mV) @ 1 PaImpedance: 120 ohms, Max SPL: 120dBSelf Noise: 29dBA, Power Requirements: P12, P24, P48, 4mA

Details

Description:

Now one boundary mic can suit almost any challenge when tasked to perform on altars, conference tables and stage floors or in media production. Because the Astatic 930VPL has variable pick-up pattern selection it can shorten the list of products an audio system designer requires when boundary mics are specified. From omni-directional to cardioid, hypercardioid, figure-of-eight and all tight or wide directional pick-up patterns in between, an installer or designer can precisely tailor the mics pick-up pattern for the best performance depending on the application or environment. Selectable power-up on or power-up muted modes using dip switches. Features the RF Resistant Architecture, programmable feather touch membrane with LED, contact closure in and out interface, and a bottom exit cable option.
