Overview

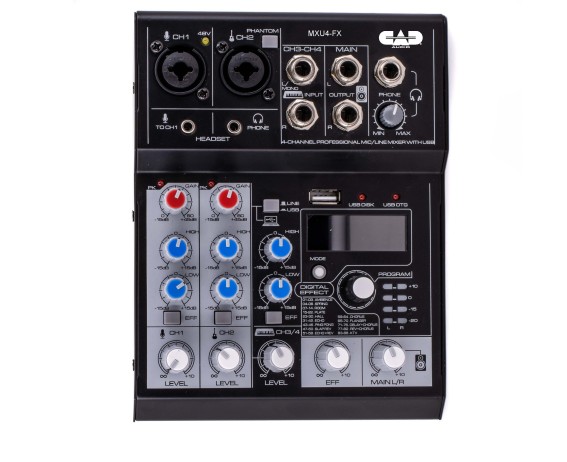

The CAD Audio MXU4-FX is a multipurpose 4 channel (2mic/line, 2 mono/1 stereo line) analog mixer with a built-in USB interface and digital effects processor. On-board 2-band EQ and +48V phantom power make it an ideal and compact option for live performance, broadcasting, podcasting or home recording.

Details

CAD MXU4-FX is a multipurpose 4 channel (2mic/line, 2 mono/1 stereo line) analog mixer with a built-in USB interface and digital effects processor. On-board 2-band EQ and +48V phantom power make it an ideal compact option for live performance, broadcasting, podcasting or home recording.

Features
• USB output connects to computer for easy recording or podcasting
• USB input for playing MP3/WAV files from a flash drive
• +48V phantom power for use with condenser microphones
• 2-band EQ per channel
• Built-in effects processor provides 88 presets for chorus, delay, reverb and more

Specifications

Model #: MXU4-FX

Inputs: 2 XLR mic/line combo, 2 mono/1 stereo line, 1 USB

Outputs: ¼” TRS, balanced

Mic E.I.N (20Hz – 20kHz): -129.5dBu @ 150 Ω source resistance

Distortion (THD): 0.005%

Noise:

Stereo out (faderat 0 dB): -88 dBu

Stereo out (fader at ∞): -100 dBu

Headphone out (fader at ∞): -88 dBu

Signal to noise ratio:

Mic input: 81dB

Line input: 78dB

Attenuation (Crosstalk):

Channel gain @ 0: -82 dBu
