Overview

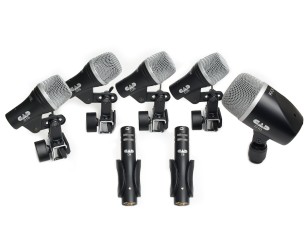

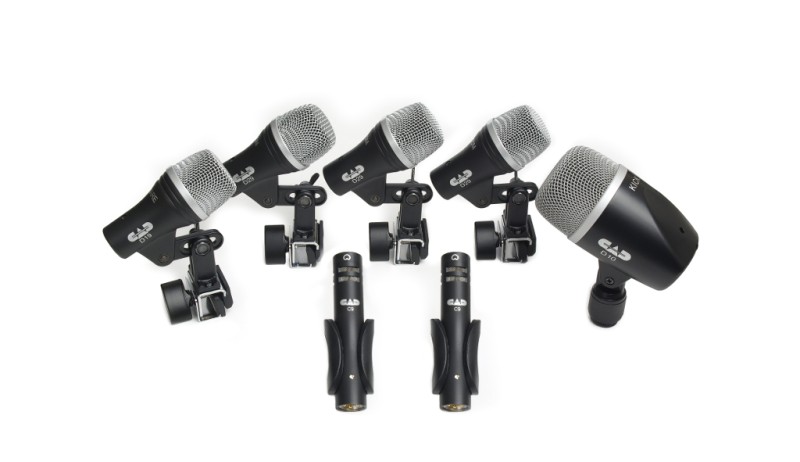

7-piece Drum Microphone Pack
Three D29
Two C9
One D19
One D10

Details

7 Piece Drum Mic Pack:
Includes three D29 dynamic tom mics with integrated drum clips
One D19 dynamic snare mic with integrated drum clip
One D10 dynamic kick drum mic with clip
Two C9 overhead condensers with clips.
Protective carrying case included.

C9 Cardioid Condenser Instrument Microphone:
.
​Operating Principle: Condenser
Polar Pattern: Cardioid
Frequency Response: 40Hz -13KHz
Sensitivity: (2.2mV) @ 1 Pa
Impedance: 150 ohms
Max SPL: 140dB
Self Noise: 27dBA
Power Requirements: P12, P24, P48, 2.2mA
Weight: 1.12oz [32g]
RF Immunity: Meets or exceeds EN55103-2, E1-E4
RoHS: Compliant
.

D29 Cardioid Dynamic Percussion Microphone:
.

Operating Principle: Moving-coil dynamic
Polar Pattern: Cardioid
Frequency Response: 90Hz -13KHz
Sensitivity: -53dBV (2.2mV) @ 1 Pa 90
Impedance: 560 ohms
Weight: 6.5oz [0.19Kg]
RF Immunity: Meets or exceeds
EN55103-2, E1-E4
RoHS: Compliant
.

D19 Supercardioid Dynamic Percussion Microphone:
.

Operating Principle: Moving-coil dynamic
Polar Pattern: Supercardioid
Frequency Response: 90Hz -14KHz, -6dB
Sensitivity: -56dBV (1.6mV) @ 1 Pa 9
Impedance: 300 ohms
Weight: 6.5oz [0.19Kg]
RF Immunity: Meets or exceeds
EN55103-2, E1-E4
RoHS: Compliant
.

D10 Cardioid Dynamic Kick Drum Microphone:
.

Operating Principle: Moving-coil dynamic
Polar Pattern: Cardioid
Frequency Response: 50Hz -16KHz
Sensitivity: 67dBV (0.45mV) @ 1 Pa 90
Impedance: 60 ohms
Weight: 12.75oz [0.36Kg]
RF Immunity: Meets or exceeds
EN55103-2, E1-E4
RoHS: Compliant

​
